Container Ramp

        Specification

•  Load capacity: 6-20T

•  Dimension: 11x2m

•  Height:max 1700mm

        Application

Warehouse logestic hydraulic container loading ramp.

        Standard Configuration

•  Manganese steel rectangular tube as beam structure.

  Adjust the height by hand-cranked,no need electric power source.

  Solid tyres x2 pcs

•  Several spare parts for 1 year.

分类: .

Product Description

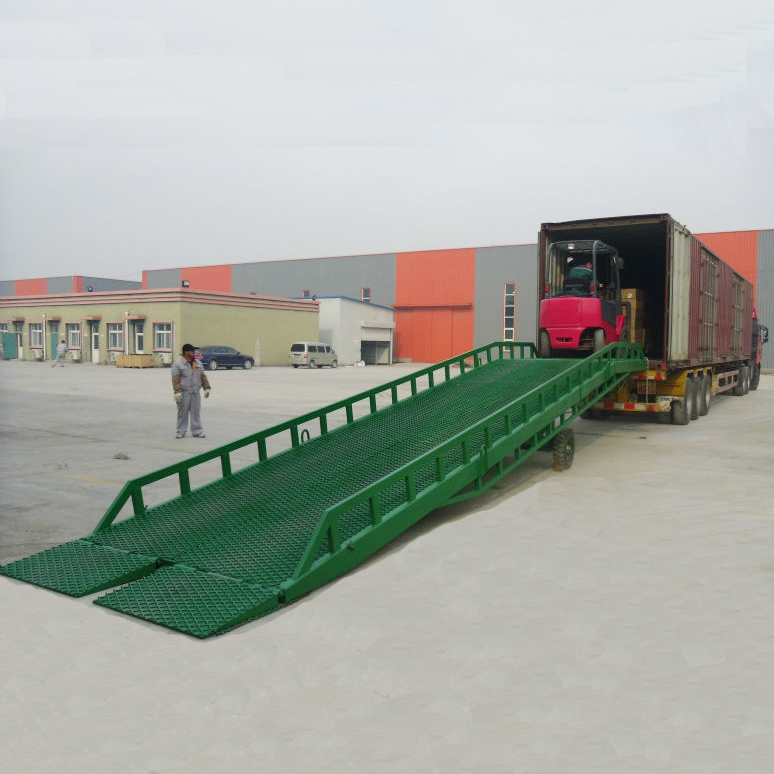

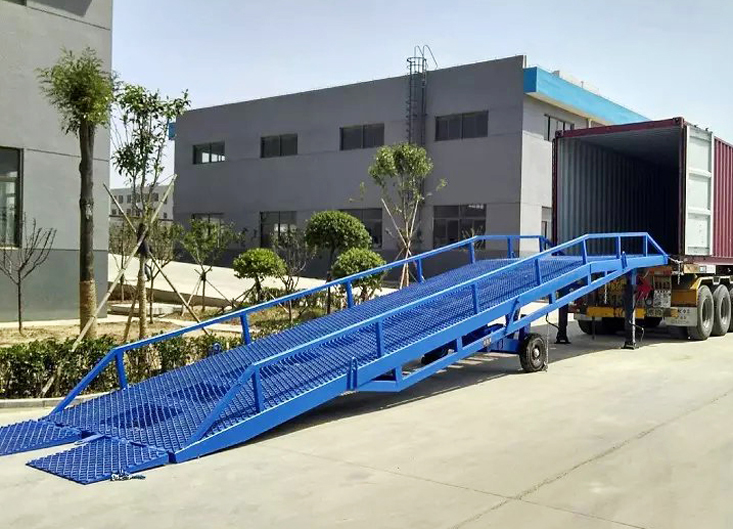

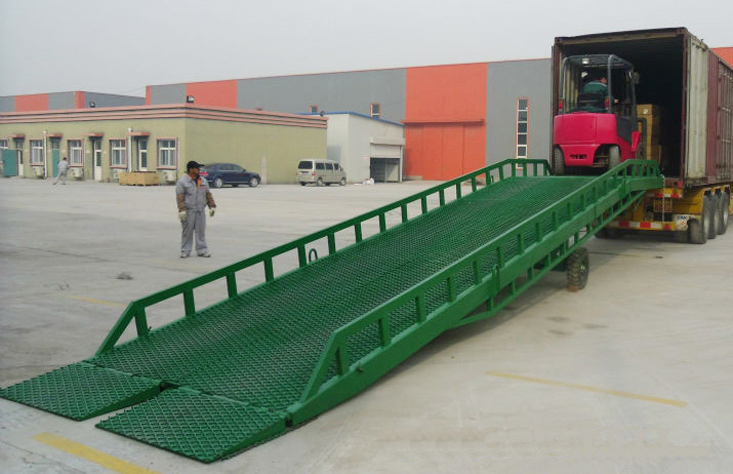

Container loading ramp also called yard ramp. It common used on dock warehouse and logistics company. Loading & unloading efficiency will be highly raised by the ramp.

    Introduce

•  This type container loading ramp can be moved by forklift truck at a different location within the park. Raised and lowered by a hand pump.

•  An inclined platform in the form of an elevated bridge bridging the difference between the truck body and the ground. You can adjust the height according to the truck height.

    Optional Configuration

•  Electric operation

    Model

 Load capacity (T)

  Length (m)

 Width (m)

 Wheel tread (m)

  Max height (m)

   YDQ-6

     6T

       11M

        2M

         1.5M

          1.7M

   YDQ-8

             8T

       11M

        2M

         1.5M

          1.7M

   YDQ-10

            10T

       11M

        2M

         1.5M

          1.7M

   YDQ-12

            12T

       11M

        2M

         1.5M

          1.7M

   YDQ-15

            15T

       11M

        2M

          1.5M

          1.7M



container loading ramp
