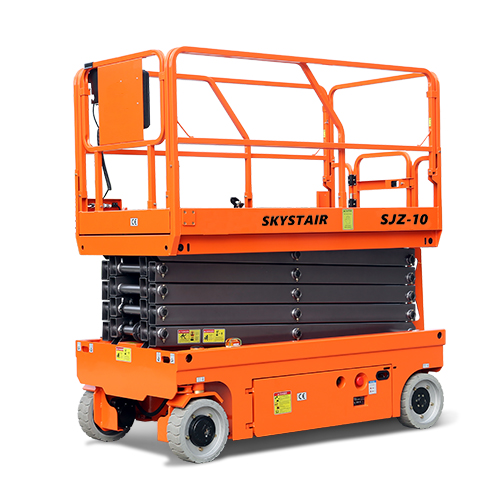

Electric Scissor Lift

    Specification

•  Working height: 6-14m

•  Load capacity: 300kgs

     Application

•  Aerial working lift platform, maintenance lift

分类: .

Product Description

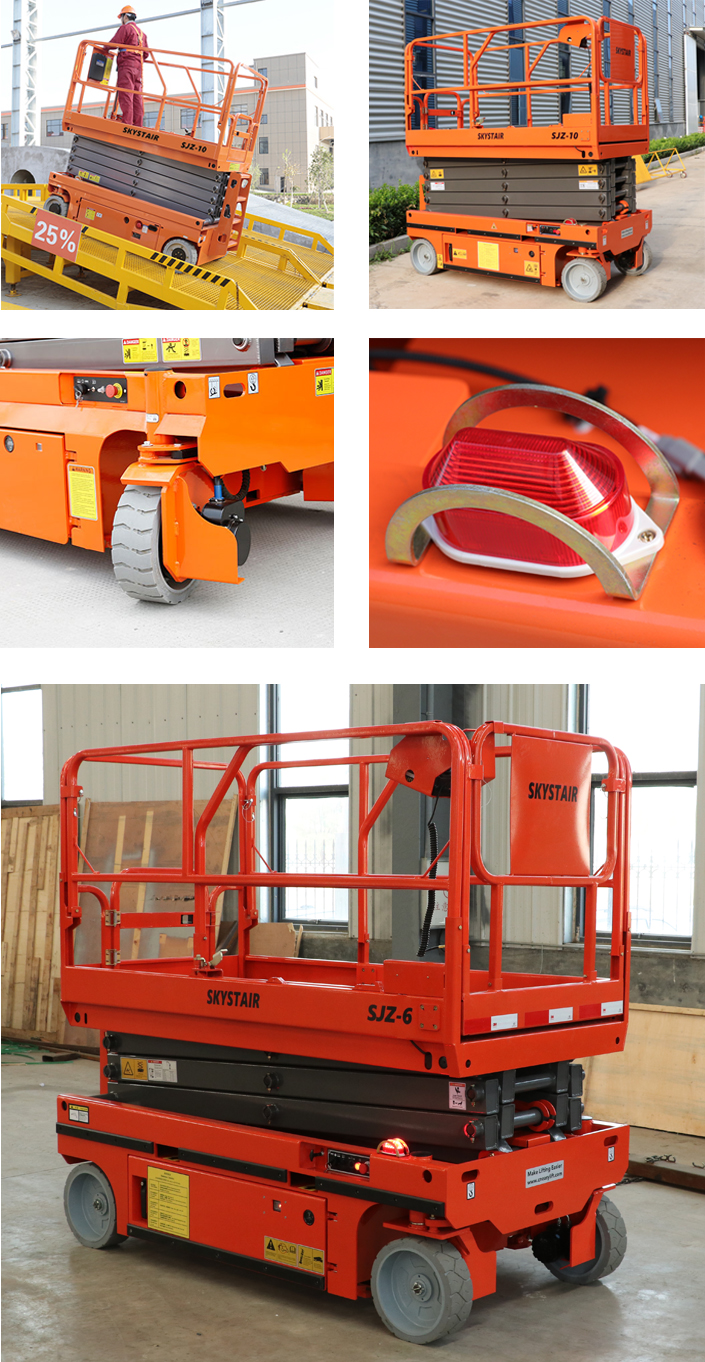

    Electric Scissor Lift Standard Configuration

•  Tilt level sensor with audible alarm.

•  Pothole protection device.

•  Intelligent battery charger.

•  Swing-out component trays.

•  Extension deck: The platform can extend 900mm on one side.

•  Manual lowered in case of power failure.

  Detachable safety handrails.

  Safety overhaul support.

•  4 rubber wheels, moves slightly and no damage to the floor.


Model

SJZ6

SJZ8

SJZ10

SJZ12

Load

380kg

380kg

320kg

320kg

Load of extension deck

113kg

113kg

113kg

113kg

Lifting height

6m

8m

10m

12m

Working height

8m

10m

12m

14m

Total dimension

2.48×0.81×1.65m

2.48×1.15×1.8m

2.48×1.15×1.91m

2.48×1.15×2.04m

Platform size

2.27×0.81m

2.27×1.12m

2.27×1.12m

2.27×1.12m

Length of extension deck

0.9m

0.9m

0.9m

0.9m

Min. Turning Radius

2.1m

2.2m

2.2m

2.2m

Lifting Motor Power

24v/3.3kw

24v/3.3kw

24v/3.3kw

24v/4.5kw

Max. Drive Speed (Stowed)

2.6km/h

2.6km/h

2.6km/h

2.6km/h

Max. Drive Speed (Raised)

0.8km/h

0.8km/h

0.8km/h

0.8km/h

Up/down speed

100/60 s

80/90 s

90/80 s

100/80 s

Battery

4x6v/225Ah

4x6v/225Ah

4x6v/225Ah

4x6v/240Ah

Battery charger

24v/25A

24v/25A

24v/25A

24v/25A

Max. Grade Ability

25%

25%

25%

25%

Tyre

381x127mm

381x127mm

381x127mm

381x127mm

Machine weight

1854kg

2256kg

2508kg

2800kg
