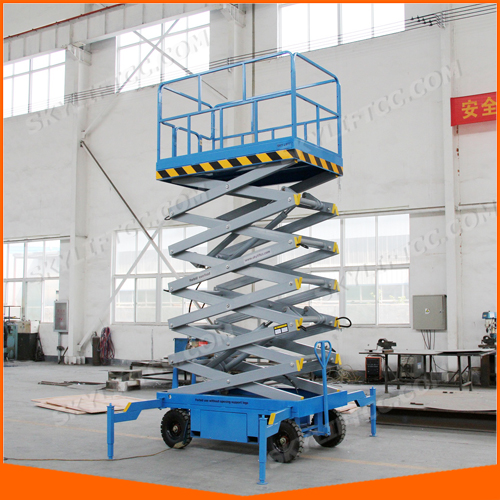

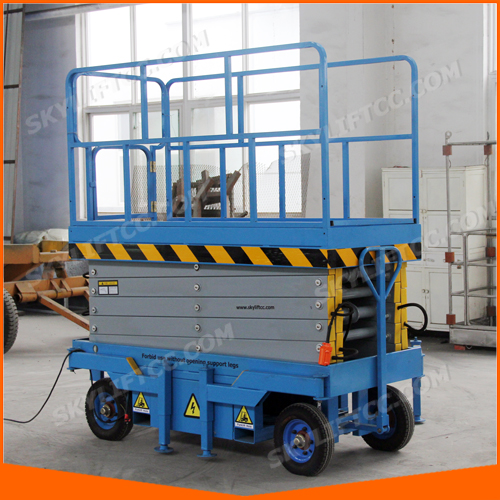

INTRODUCTION OF SCISSOR LIFT

There are mainly two types of scissor lift.

1. mobile scissor lift

2. full automatic scissor lift.

let me introduce the scissor lift this time , and mext time full automatic lift will be introduced.



Usage:The mobile scissor lifts are used for lifting man to a high point, for example, it can be used for changing street light, cleaning glass wall, etc.

and it is easy to move, it have four wheels and a handle, you just need to pull the handle, it would move forward.

it can be AC, DC and deisel power.

lifting height of the scissor lift from 4 to 18m for your choice.

if you eant know more about our product, please contact us by

email: jessica@skyliftcc.com

whatsapp: 8615726110115

wechat:yz872093672


Share this
22 11月 2016
15 11月 2016

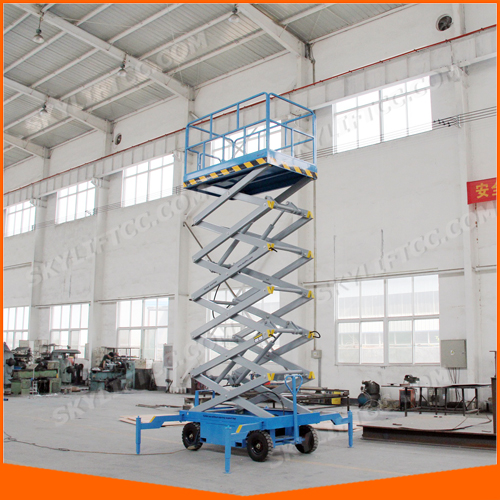

Introduction of Mobile Scissor Lift

There are mainly two types of mobile scissor lift

1. self propelled scissor lift

2. full automatic scissor lift.

today I just introduce the self propelled scissor lift, and next time I troduce the full automatic scissor lift.

The scissor lift are used where more workspace and lifting capability is required. With working heights up to 20 meters and capabilities up to 3000kg (2200lbs), they are designed to provide larger platform work areas and generally to allow heavier loads than boom lift.

Model& Advantages:
Electric Powered Models (220v or 380v etc)
Indoor Usage
No noise and air pollution
Diesel Powered Models
Outdoor Usage
Longer usage time
Battery Powered Models
 Outdoor Usage
 No noise

    Model    Platform size    Load  Lifting Height         Dimension  Machine weight
  SJY0.3-4   2100*820mm   300kg         4m     2200*950*1100           800
  SJY0.3-6   2100*820mm   300kg         6m     2200*950*1200           880
  SJY0.3-8   2100*900mm   300kg         8m     2200*1060*1380          1050
  SJY0.3-10   2100*1200mm   300kg        10m     2200*1350*1530          1360
  SJY0.3-12   2550*1500mm   300kg        12m     2720*1670*1750          2260
  SJY0.3-14   2550*1500mm   300kg        14m     2800*1800*1950          2510
  SJY0.3-16   3070*1600mm   300kg        16m     3250*1800*2080          3400
  SJY0.3-18   3070*1600mm   300kg        18m     3250*1800*2080          3600

Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the people above platform.
3) The limit switch system helps the lift table to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the scissor lift are passed 1.2 times loading test before leaving factory.

If you want to know more about our products, please contact us by

email: jessica@skyliftcc.com.

whatsapp: 8615726110115

our company website: www.skyliftcc.com

Share this
15 11月 2016

The Application of Our Lift Products

Thank you for your attention to our lift product. First part we want to show you the applications of every different types of hydraulic scissor lift. To high work,  1, For Small business, Lcd display, Shop Signage, and Home Building Ceaning>> 0212 Easy to operate, Convenient to move and very smart.

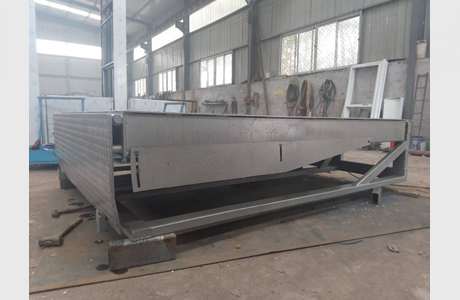

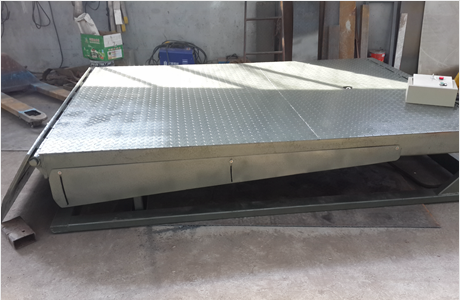

2, For Storage and Logistics>> We have dock scissor lift, dock leveler and mobile container ramp for the forklift truck loading and unloading goods from the container or truck, can save much labor force and improve work efficiency. 14 3, For Warehouse Work>> SKYLIFT stationary scissor lift and vertical cargo lift platform are popular used for lifting cargoes from ground to different floor to improve the working efficiency, thereby enhancing production efficiency. stationary-scissor-lift 4, For Maintenance&Installation Work>> Trailing mobile scissor lift, aluminum alloy lift, trailer boom lift and other mobile lift is always used to lift workers for maintenance for indoor and outdoor, different powers could be used in different work situations. 0212 5, For Cleaning Work>> Self-propelled scissor lift and boom lift are widely used in indoor and outdoor in cleaning the roof of the lobby or shopping mall, install and maintain the road light, house and factory decoration. 05 6, For Storage and Logistics>> We have dock scissor lift, dock leveler and mobile container ramp for the forklift truck loading and unloading goods from the container or truck, can save much labor force and improve work efficiency. mobile-scissor-lift 7, For Industry Work>> SKYLIFT connects your industry with access equipment for a wide variety of applications. Whether you work in agriculture, heavy construction, mining, warehousing or virtually anything in between, SKYLIFT offers a full line of aerial work platforms, telehandlers, stock pickers, mast booms, trailers and equipment accessories to meet your needs. 8, For The Disabled>> Our vertical wheelchair lift is used for home lifting, especially suit for a wheelchair accompany with a person from one floor to a higher platform, widely used in both indoor and outdoor, providing a perfect access for the disabled people. 100_1708s

Share this
30 8月 2016
30 8月 2016
30 8月 2016

The new product wheelchair lift to Russian Federation

The new product  wheelchair lift has send to Russian Federation on 24/9/2014.

This 1.1m wheelchair lift, is used in a stage with four wheels it is widely used both in China and in foreign country.

The wheelchair lift consists of a platform with high side walls, an upper landing gate, a platform mounted gate,

a drive system and easy-to-use operating controls. Suitable for indoor and outdoor use.

Share this
30 8月 2016

Characteristics of single aluminum lift

1, Light weight, good flexibility, suitable for single operation;
2.The special 2 mast guide wheel device lift smoothly;
3, Compact structure, small size in transporting, can be hold in the general elevator carand can smoothly through the doorways and narrow channels;
4,Leg structure with double protection,more secure, and close to the working facelifting operation;
5, According to the demands to cnotrol the lifting height, it can be made into a manual on or electricon lifting platform. In order to meet the lifting platform can not enter the door is relatively low situation.

Share this
30 8月 2016

Safety rules

Even if you are familiar with the other types of aerial work platform, but to ensure the safe and efficient work, please read the following precautions:
1.Without the basic operation training person should not use the machine.
2.Without the required conditions of using it shouldnot be forced to work.
3.The mast and platform should not be any obstacles or collision in the process of lifting and hoisting.
4.Exceept the emergency, the ground staff should not operation control device before the high-altitude operations personnel command.
5.Platform lifting, forbid to stand or stowage items.
6.No change, modify and waste safety device.
7.Forbidden overload hoisting.
8.Forbidden mobile machine.
9.Forbidden set up the working height increasing device.

Share this
30 8月 2016

Wheelchair lift platform

The so-called wheelchair lift platform, is mainly composed of a track and a lifting bedplate, that is similar to a simple small elevator. The rail is embedded in the channel entranceon the wall that with the slope of the stairs down the rail is to the internal. The lifting platform can be folded against the wall when it is not in used, hence it can not occupy the channel entrance space. Rides wheelchair’s disabled when in use, the wheelchair on four wheels can be fixed on the bedplate, press the switch can control the lifting platform to enter theunderground passage, it is safe and convenient.

Platform size

1200mm(L) x 1200mm(W)

Max Platform Height

6000mm

Speed

60mm/s

Load capacity

150KG~350KG

Operate voltage

24V

Power Output

2.2KW

Power Input

220V/50HZ (or customized for local power supply)

Drive System

Hydraulic

Control Mode

Inching Switch or Automatic

Drive Control

Self-resetting system

Overload

Protection Over current relay

Material of Platform

Checkered slip-proof aluminum alloy

Painting

Plastic electrostatic spraying

Working Condition

Both indoors and outdoors

Working temperature

From -10°~60°C

Installation

Non-pit installation, directly fixed to concrete floor (the concrete

floor below the platform shall not be lower than the ground)

Control Device

Calling box (installed on the wall nearby) and remote

controller(Extra optional)

Emergency Stop

The lifting and lowering process can be stopped immediately

by pressing the emergency button.

Safety device

Safety Interlock

Lock the platform when it is out of control

Emergency lowering

The platform can be lowered by opening

hydraulic valve manually or rolling screw rod.

Share this
